Automatic wire looper technical parameters
Technical parameters:
1, take-off frame form: end shaft Electric lift type
2, lift motor: reducer motor 2HP (1.5kw)
4, high speed of the circled host :500 rpm
5, motor power: 5HP (2.2kw)
6, control system: frequency conversion + single chip integrated system
7, the size of the coil plate: ∮130mm-∮250mm (can be used Optional)
8, Disk reel specification: ∮1000mm-∮1250mm (optional)
9, Brake System: Pneumatic Brake Control
10, Scope: 0.5-6 square meters A single wire and a wire diameter less than 14MM round sheath wire looping and tying.

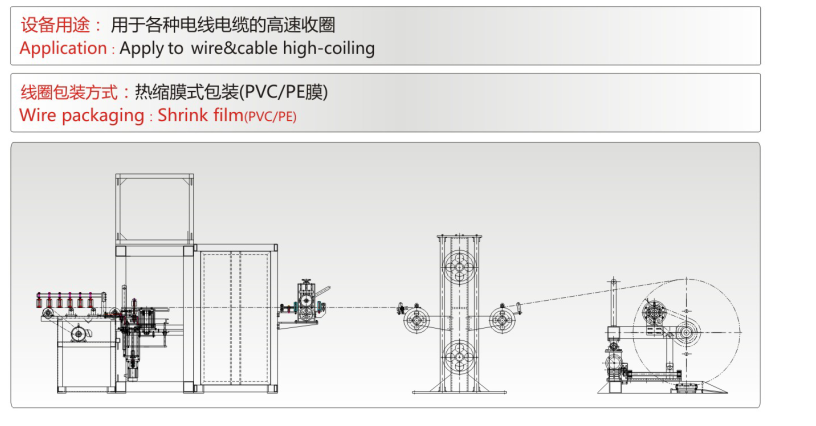

Equipment: Medium-section automatic line-forming looping machine consists of end-shaft pay-off frame, metering device, fast looping device Part of the composition.
1, 630mm pneumatic shaftless double top arm type pay-off frame (optional)
Applicable spool: ∮630MM-∮800MM
Applicable cable: 0.5 square-6 square (hard structure) ), 0.5 square -6 square (soft structure)
release speed: 0-500m/min Large load capacity: 3 tons
< p="">Opening and closing mode: electric lifting, double top arm upper and lower discs
Brake method: cylinder system Dynamic control brake
2. Two-way one-way mode of high-precision metering device
Big line speed: 500m/min (m/min)
Test cable range: 2-14mm
<>
Measuring Accuracy: 0.1%
Elasticity: Double-cylinder one-button elastic

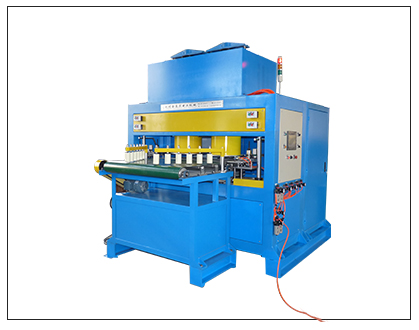

Three, automatic cable winding machine
Cable line mode: automatic cable
Host speed: 0-500 rpm
Line OD: ㄍ=450MM (according to Customer requirements to order)
Number of wire troughs: 3 slots (according to passengers) User requirements to order)
Motor power: 5HP inverter control
; Wire diameter: ∮120MM (can be customized according to customer requirements)
Wire thickness: 40-100MM (can be customized according to customer requirements)
Scope of application: looping of BV0.5-6-MM wire products
<>
