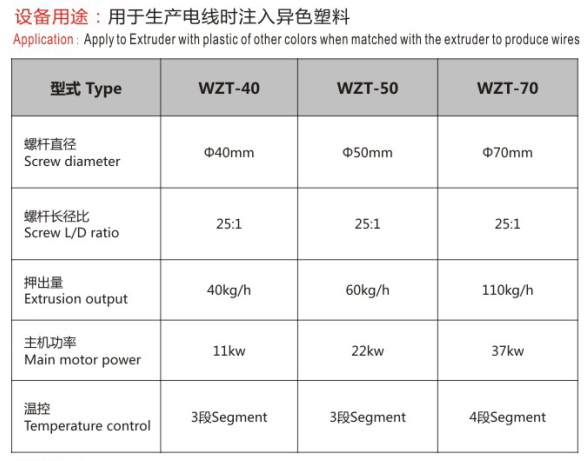

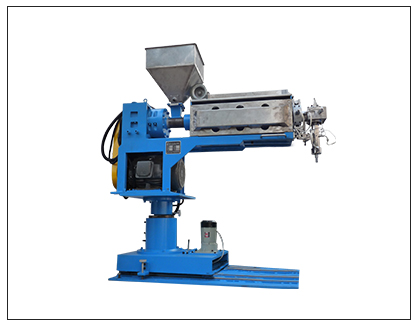

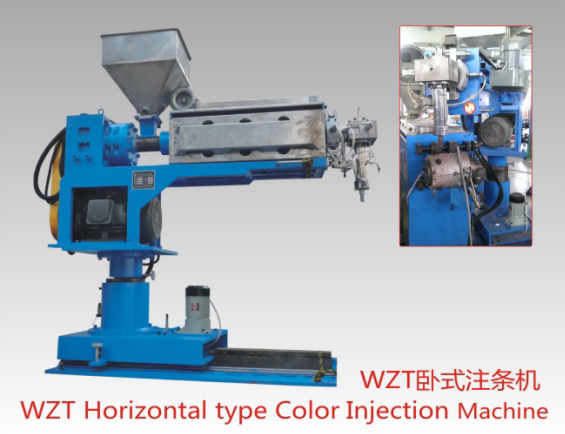

Cable machine main specification
screw parameters:
Diameter: Ф50mm extrusion machine PVC special screw 壹.
Material: 38CrMoAIA alloy steel, B/M type, full tooth nitriding treatment, surface hardness HV950 or more, its characteristics have a large amount of extrusion, plasticization degree of 100%.
Length to diameter ratio: 25:1.
Speed range: 0 to 90 rpm.
The amount of extrusion: 0 ~ 60KG / H. (open head, soft PVC)
Screw cylinder parameters:
Material: SACM aluminum-chromium-manganese alloy steel, nitriding treatment, precision grinding in the cylinder, the hardness of the inner surface of the screw cylinder is higher than the hardness of the thread surface of the screw R2-R3.
Equipped with 15HP Germany SIEMENS motor.
The center height of the unit is 1000mm.
Gearbox:
Imitation Italian reduction gear box, precision grinding, mandatory oil lubrication and cooling, with anti-wear, low noise characteristics, dedicated to 50 machines.
Tr
Dryer, suction machine: (Taiwan Uniform)
a. 25KG type separation type automatic suction machine, the suction amount is 450kg/hr. b. Straight knot hopper drying, drying temperature efficiency 100%
Tr
c. Automatically control the temperature and set the temperature arbitrarily.
Tr
Heating and cooling:
Four-stage heating (heating of the three-stage cast aluminum heater in the fuselage, one step of the machine), alternately heating and cooling with three cooling blowers, using the Taiwan Shiwei temperature controller, the temperature can be fully adjusted within the range of 0-399 °C When the actual temperature is higher than the set temperature, the thermostat automatically cuts off the power of the heating element and simultaneously turns on the cooling blower power.
Tr
Machine head and mold
It is shared with the host head (with the host head connection interface).
Power equipment
The main engine is equipped with 15HP Germany SIEMENS motor, 15HP American Emerson (EMERSON) inverter control, speed adjustment is convenient, the main engine runs stably.
Tr
F. Automatic lifting, using linear slide rails to dock with Ф70 mainframe, lifting power: 400W gear reducer
Tr
D. Electronic control part: independent electronic control, and the height and width of the main electric control cabinet are flush.
