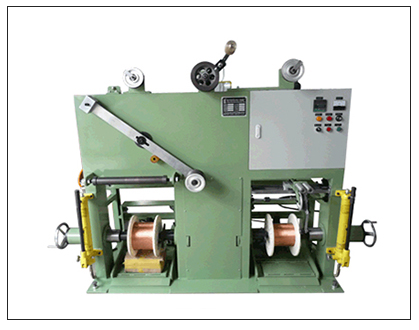

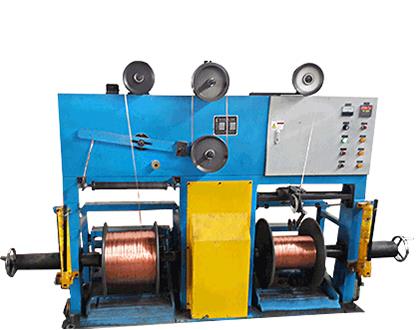

High-speed automatic shafting machine is equipped with a line tension tensioner, metering device, and fast looping The device is composed of three parts, and the spark point and the diameter of the wire diameter can be detected online by an optional spark machine and a caliper. The high-speed stranding machine auxiliary equipment is described as follows:
1: Line tension tensioner:
A: Use the line-type release line to maintain stability with line tension .
B: According to the wire diameter of different wires. The tension can be adjusted by springs and pulley blocks.
C: (1) lever brakes, (2) double-tapered plug-in Chinese brakes without shaft lift. The swing arm guide wheel is downward, and the release line resistance is larger. When the main body is set to the loop length for quick braking, the swing arm guide wheel is in the position, the pay-distribution disc is placed in the line resistance, and the pay-distribution disc can be braked within 1-2 seconds. Will not mess with the line.
D: Use (1) handle type (2) double thimble type upper and lower discs to quickly and easily replace the storage reel, the storage line range can be from 0-630mm,
2: Electronic metering device:
A: The pressure roller adopts a one-way bearing, and the wire can only go forward without retreating.
B: Use electronic counting sensors to improve meter accuracy.
C: The meter meter wheel adopts high-temperature phosphating treatment, and the pressure roller uses imported PU rubber-coated wheel, which has high hardness and wear resistance, and the wire is not deformed under pressure.
