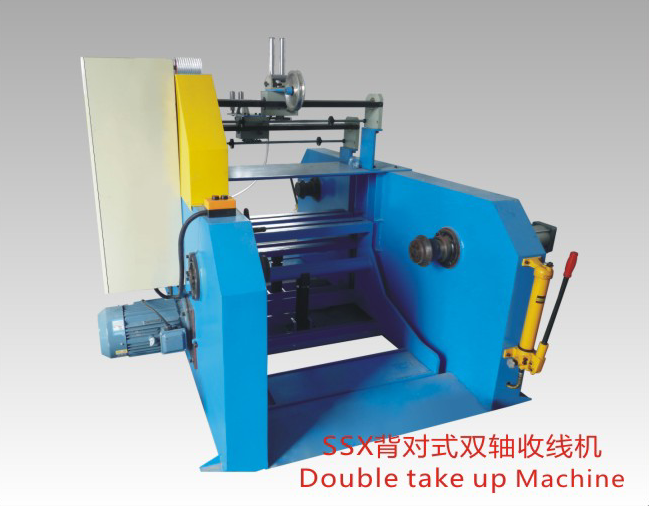

Product introduction a. Two-stage take-up spool take-up line, can be equipped with different take-up devices as needed.
b. Use φ30 polished rod cable arranging cable, the speed and width of the cable can be adjusted.
Washing Machine Product attributes can be placed in 400, 500, 630, 800 <>
According to the customer's needs, first open the "power switch", after the wire is wound around the reel, "the number of meters is zero", according to the production needs to set the "meter meter" to automatically stop the number of meters, (such as If you don't need it, set the meter value to large. Press the “Left Start” or “Right Start” button (according to the winding), turn the “Left Speed” or “Right Speed” knob clockwise to adjust the take-up speed. As the wire take-up speed increases, the voltage of the "voltmeter" of the shaft also increases. Once adjusted to the desired speed, the device is automatically produced. If the automatic shutdown meter is set, the device will automatically stop when it reaches the meter. If it is not set, the operator will first turn the “left speed” or “right speed” counterclockwise and then press “ The device stops working when left stop or right stop. Main features a.This equipment should be installed in a sturdy and flat place, with the rubber pad under the base and fastened with expansion screws. Installation
b. When wiring the device, look at the bobbin steering. The unit is: facing For the take-up machine, the take-up reel should rotate clockwise.
c.Connect the meter to the meter and connect it to the meter. The problem can be used for normal production
The main purpose is Siemens brand 4KW three-phase asynchronous variable frequency motor drive; equipped with Japanese three-inch inverter, and linked with the inspection of the storage rack, automatically adjust the take-up speed, take-up meter The number is set by itself, and when the number of meters is automatically stopped after it is in place, it can be switched to another take-up spool to automatically take off the line. Precautions This equipment should be regularly maintained as follows
a, The drive belt should be checked for tightness regularly, such as too loose to loosen the motor tightening screw for adjustment.
b,The bearings at both ends of the take-up reel and the lead screw should be lubricated with grease regularly.
c, Motor maintenance see instructions.
Other Description 1 The main color of this product is sky blue (customers can change the color, you can mail the swatch to the factory, we can adjust the color according to the customer's swatch)
2 The equipment composition of this product can be increased or decreased according to the production needs of customers
