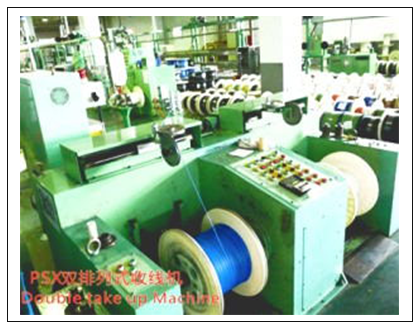

The cable take-up machine is a special equipment for the wire and cable factory to take over the cable. The difference between the shaftless opening and closing lifting and discharging machine and the traditional type of shaft collecting and discharging machine is that the installation is convenient, the labor intensity of the worker is reduced, the width of the take-up reel is easy to be installed and positioned, and the wire and cable factory needs to wind up other wires. Ideal auxiliary equipment. Jinlaier constantly draws on advanced technology from Europe, America and Japan, and the main components used in the machine are original products from Sakamoto, Taiwan and the United States. It can better produce high-speed extruders and high-speed silicone extrusion lines with advanced levels. Electric control cutting machine, high-speed stranding machine and high-speed electric control stranding machine, cable-forming machine.
Instructions for use
1, Foundation:
1-1. Dig the pit according to the foundation drawing of the cable machine, and install it after cement mortar construction. Foundation hole. After the foundation is solidified, the lifting equipment is installed. After the equipment is installed in place, install the foundation bolts, fill the cement mortar into the holes, and solidify.
1-2. After the gel is solidified, tighten the cap.
2, install the electrical:
2-1, according to the electrical schematic diagram of the cable machine, the electrician operates the wiring.
2-2. Turn on the power and turn on the test machine item by item. If there is any problem, correct it in time.
3. Operation Guide:
3-1. Install the take-up reel and lift the top cone at both ends of the column according to the center height of the reel so that it reaches the center of the reel position.
3-2. Start the opening and closing button to install the take-up reel in place.
3-3. Start the lifting button so that the take-up reel is 50~80mm away from the plane of the machine.
3-4. Start the torque motor button to make it run slowly.
3-5. The left and right movement position of the cable arranging device should be adjusted according to the actual situation to meet the requirements of the width of the cable.
3-6. After the no-load test machine is running, if there is any problem, it should be eliminated in time.
3-7. After the no-load test machine is running, the technical workers used in the operation should be familiar with the essentials of the wire-receiving machine.
3-8. Before the final load is applied, the wire-receiving machine should pay attention to whether the lubrication parts have been lubricated.
