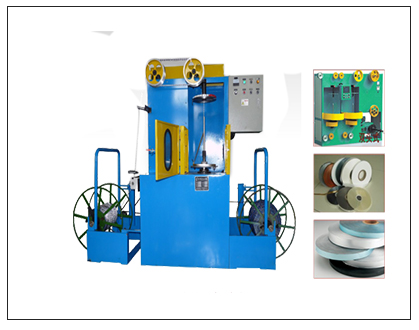

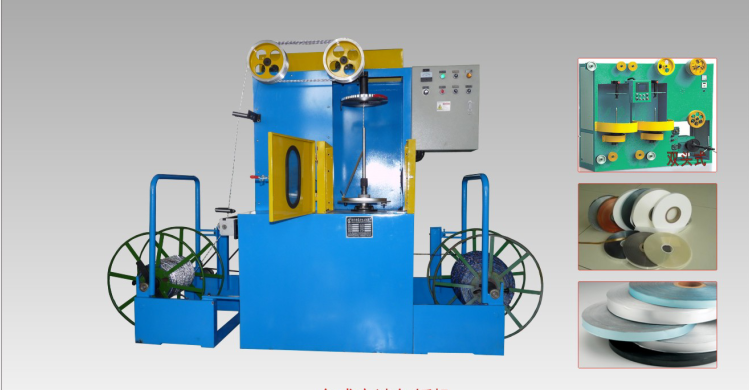

This machine is a vertical single layer Paper machine, rotate the tape (paper tape, aluminum foil, etc.) through the turntable, wrap around the core wire, and have a single-wrap head . Rotate one left and one right to perform secondary wrapping. It is mainly used for mica tape wrapping of insulated cores such as wires, cables, cables, cables, etc. Fire-resistant wires and cables are mainly used in power plants, airports, ships, high-rise buildings, subways, underground shopping malls and entertainment venues. The demand for fire-resistant wire and cable is increasing, so the advent of multi-head fire-resistant wire and cable wrapping machines has provided new special equipment for wire and cable factories.
Working principle:
This machine is a single-layer wrapping, which is driven by an AC motor via a belt to drive a pair of bevel gears through the gears to make the winding plate Rotating in the left and right direction, the core side is rotated by the lead wheel through two forward and reverse rotations, and the wrapping tape is wrapped around the core twice to achieve the purpose of secondary wrapping. The speed of the take-up wheel can be changed by adjusting the transmission to meet Different winding pitches are required. Single, double and triple layer wrapping machines can be produced according to customer requirements.
ZF-BZ-Ф500 high-speed double-layer wrapping machine
ZF-BZ-Ф630 high-speed double-layer wrapping machine
ZF -BZ-Ф800 high speed double layer wrapping machine
<>
<>
